Antirust Galvanized Stainless Steel Rope Mesh Cable For Buildings
  • Antirust Galvanized Stainless Steel Rope Mesh Cable For Buildings
  • Antirust Galvanized Stainless Steel Rope Mesh Cable For Buildings

Antirust Galvanized Stainless Steel Rope Mesh Cable For Buildings

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-SSCM0915
Product Details
Product Name:
Stainless Steel Cable Mesh
X-Tend Stainless Steel Rope Mesh
Safety & Anti-rust
Hole Size:
Red/ Blue/ Yellow/ Silver/ Golden,etc.
Decoration, Fence,Divider
Strong Strength

Antirust stainless steel rope mesh


Galvanized stainless steel rope mesh


Galvanized stainless cable mesh

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

Rust And Fall Protection Stainless Steel Cable Mesh For Buildings



Choose your stainless steel cable mesh from Jumao


Our stainless steel cable mesh is ideal for construction, security, agriculture and other applications.

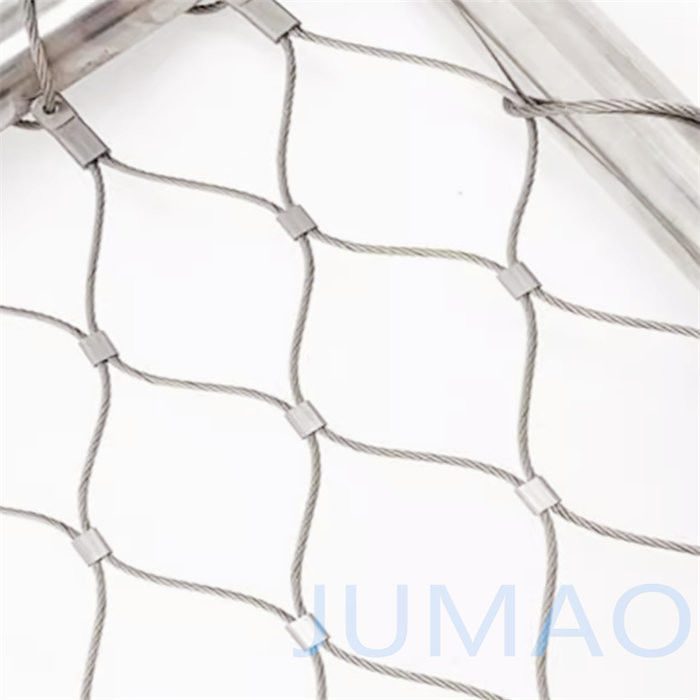

It consists of stainless steel cables and sleeves that form an elastic metal fabric that forms a diamond pattern when installed. Diamond sizes range from 20 mm to 200 mm and cable diameters from 1.2 mm to 3 mm to meet your design requirements.

It is very strong and transparent, and almost disappears after installation. It is non-combustible and allows plenty of light and airflow, so it functions well in parking lots and fire escapes.


Our stainless steel wire mesh is a sustainable building element. It is maintenance-free, corrosion-resistant and does not require aggressive cleaners or coatings. It is particularly suited to the harshest climates.


Its ability to act as a three-dimensional structural element reduces the need for traditional building materials while allowing for high load capacity and large spans. Its unique 3-D features allow for amazing design flexibility. The result is a light, scalable, low-quality structure that greatly reduces material and installation costs.


Our stainless steel wire mesh applications include railings, vertical green walls, zoo fences, aviary netting and security applications.


Our wire mesh is customized according to your specific requirements. The following factors need to be considered.


Service For Stainless Steel Cable Mesh


Transportation and delivery

We have many shipping options available, express Mail and Express 1-2 day delivery time or economy priced Standard Mail will take around 3-5 business days depending on location. International customers please select Standard Post and DHL or email your request and we will send you a quote including shipping costs.


Payment method

At Jumao, we offer a range of payment options. Use your credit card or PayPal balance to secure credit card payments through "SHOPIFY payments" or PayPal. If you wish to pay for your pick-up order by electronic remittance or cash, please send your order by email


Need help

Write to us or call us. We'd love to hear about your experience and answer any questions. Your questions and opinions are important to us.


Exceptional aesthetic meets performance with Jumao flexible stainless steel cable mesh.


When surrounded by a frame or tension cable, you can use the X-TEND to achieve a very effective and stylish rail/railing. X-TEND mesh allows for optimal transparency while providing superior performance in security and barrier applications.

The Jumao X-TEND network needs to be secured in place with boundary cables or peripheral pipes. These transfer the forces applied around the full perimeter of the flexible mesh plate to the support structure, railings or railings. The boundary cable deflects in response to this force, adding a unique and elegant form to the application. If aesthetics require a more linear or regular grid panel to deflect freely, then the grid can be tied directly to the rod or tube frame.

Specification support and design assistance

Jumao X-TEND Net is a full load rated elastic stainless steel net with performance that allows for some fantastic 3D applications. For best results, our Design Engineering department can provide boundary and fixing advice, assist with component selection and detailed CAD drawings.

Mesh Size

Stainless steel cable diameters from 1mm (0.039 in.) to 4mm (0.157 in.) can be selected for the mesh material in accordance with the desired level of “lightness” or strength.

Mesh Aperture/Width

Mesh apertures range from 25mm (1 in.) to 100mm (4 in.) and can be selected for aesthetics, “climb ability” and the preferred level of transparency.


Data Table Format for Stainless Steel Cable Mesh


Item No.s Cable Diameter Mesh Opening Size(W×H)
  inch mm inch mm
BZ-32120F 1/8 3.2 4.75 x 8.23 120 x 207.8
BZ-32102F 1/8 3.2 4 x 6.9 102 x 176.7
BZ-3290F 1/8 3.2 3.55 x 6.15 90 x 156
BZ-3276F 1/8 3.2 3 x5.2 76 x 131.6
BZ-3251F 1/8 3.2 2 x3.46 51 x88.3
BZ-24102F 3/32 2.4 4x6.9 102x176.7
BZ-2490F 3/32 2.4 3.55x6.15 90x 156
BZ-2476F 3/32 2.4 3 x 5.2 76x 131.6
BZ-2460F 3/32 2.4 2.4x 4.16 60x 104
BZ-2451F 3/32 2.4 2x3.46 51 x 88.3
BZ-2076F 5/64 2.0 3 x 5.2 76 x 131.6
BZ-2060F 5/64 2.0 2.4x 4.16 60 x 104
BZ-2051F 5/64 2.0 2 x 3.46 51 x 88.3
BZ-2038F 5/64 2.0 1-1/2 x 2.6 38 x 65.8
BZ-1676F 1/16 1.6 1.2 x2.08 76 x 131.6
BZ-1651F 1/16 1.6 2x 3.46 51 x 88.3
BZ-1638F 1/16 1.6 1-1/2 x 2.6 38 x 65.8
BZ-1630F 1/16 1.6 1.2x2.08 30 x 52
BZ-1625F 1/16 1.6 1 x 1.73 25.4 x 44
BZ-1238F 3/64 1.2 1-1/2x2.6 38 x 65.8
BZ-1230F 3/64 1.2 1.2 x 2.08 30 x 52
BZ-1225F 3/64 1.2 1 x 1.73 25.4 x 44
BZ-1220F 3/64 1.2 4/5 x 1.39 20 x 34.6


Cases of Stainless Steel Cable Mesh


Antirust Galvanized Stainless Steel Rope Mesh Cable For Buildings 0


Antirust Galvanized Stainless Steel Rope Mesh Cable For Buildings 1


Antirust Galvanized Stainless Steel Rope Mesh Cable For Buildings 2


Antirust Galvanized Stainless Steel Rope Mesh Cable For Buildings 3


















Antirust Galvanized Stainless Steel Rope Mesh Cable For Buildings 4
