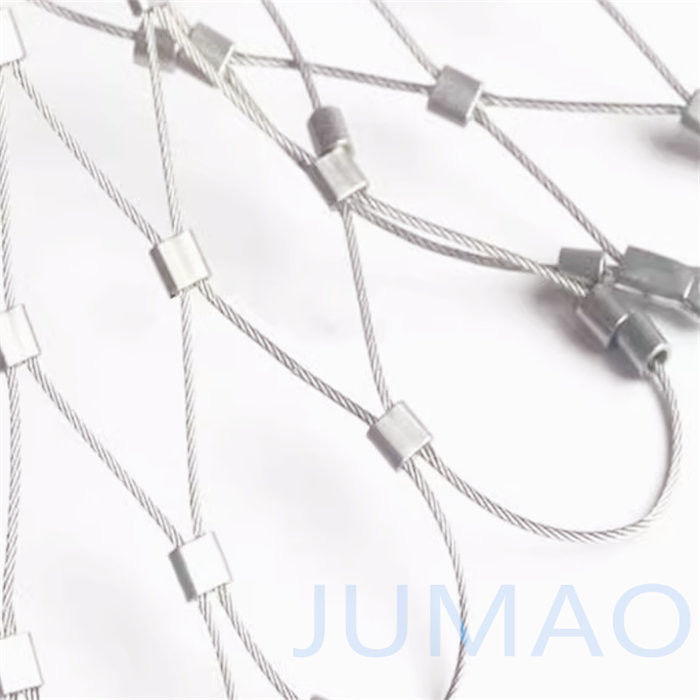

Flexible Strong Stainless Steel Cable Mesh Wire Rope Deck Balustrade
  • Flexible Strong Stainless Steel Cable Mesh Wire Rope Deck Balustrade
  • Flexible Strong Stainless Steel Cable Mesh Wire Rope Deck Balustrade

Flexible Strong Stainless Steel Cable Mesh Wire Rope Deck Balustrade

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-SSCM0998
Product Details
Product Name:
Stainless Steel Cable Mesh
Keyword:
X-Tend Stainless Steel Rope Mesh
Material:
Stainless Steel 304&316
Technology:
Twist/Clamps
Rope Diameter:
0.8-4mm
Advantages:
Anti-rust ,Anti-falling
Color:
Red/ Blue/ Yellow/ Silver/ Golden,etc.
Application:
Deck & Balustrade
Tech:
Twist Or Clamps
Size:
2m*6m
Highlight:

Flexible Stainless Steel Cable Mesh

,

Balustrade Stainless Steel Cable Mesh

,

Balustrade stainless steel wire rope mesh

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
Price
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

Flexible & Strong Stainless Steel Cable Mesh Deck And Balustrade





Exceptional aesthetic meets performance with Jumao flexible stainless steel cable mesh.



When surrounded by a frame or tension cable, you can use the X-TEND to achieve a very effective and stylish rail/railing. X-TEND mesh allows for optimal transparency while providing superior performance in security and barrier applications.

The Jumao X-TEND network needs to be secured in place with boundary cables or peripheral pipes. These transfer the forces applied around the full perimeter of the flexible mesh plate to the support structure, railings or railings. The boundary cable deflects in response to this force, adding a unique and elegant form to the application. If aesthetics require a more linear or regular grid panel to deflect freely, then the grid can be tied directly to the rod or tube frame.

Specification support and design assistance

Jumao X-TEND Net is a full load rated elastic stainless steel net with performance that allows for some fantastic 3D applications. For best results, our Design Engineering department can provide boundary and fixing advice, assist with component selection and detailed CAD drawings.

Mesh Size

Stainless steel cable diameters from 1mm (0.039 in.) to 4mm (0.157 in.) can be selected for the mesh material in accordance with the desired level of “lightness” or strength.

Mesh Aperture/Width

Mesh apertures range from 25mm (1 in.) to 100mm (4 in.) and can be selected for aesthetics, “climb ability” and the preferred level of transparency.



Advantages of Stainless Steel Cable Mesh



Lightweight, flexible, transparent, durable and long-lasting Jumao cable mesh is made of woven high quality stainless steel rope and ferrule. Jumao cable mesh is one of the favorite materials for wide-eyed architects and designers who want to shape their limitless imagination. Due to its flexibility and curvature characteristics, the Jumao cable mesh can move in the opposite direction, allowing it to bend and change to the desired geometry. Therefore, it can be used in large areas without the need for any auxiliary substructures.



Jumao stainless steel cable mesh is produced in different net widths and rope diameters according to different application fields.

Consider its features, such as:



Durability,

Transparency,

Light weight



Jumao stainless steel cable mesh is a material suitable for use in everything from railing fillings to facade structures to free-form zoo enclosures.

Jumao cable network application areas:



Railings,

Safety net,

Close the net,

The outer wall,

Green plants,

Decorative design,

Zoo enclosure



Stainless Steel Cable Mesh- Safety & Flexible



The cable mesh is made of high-quality stainless steel and is a fabric with special elasticity and flexibility. It was invented in 2000 and opened up a new world of spatial possibilities using cables. There is no doubt that due to its high strength, durability and corrosion resistance, it quickly swept the global market.



Jumao, as one of the leading cable mesh manufacturers in Asia, offers a variety of cable mesh, mainly in three styles: knotted cable mesh, looped cable mesh and sequined cable mesh, as shown in the picture.



Both knotted and looped cable networks have diamond patterns, but they differ in the way the cables are combined. The former's cables are intertwined, while the latter is named for its seamless connection. And the color of the sheathed cable network can be customized. For glitter cable mesh, our company can provide customized services to meet the different needs of your project. In general, the knotted and looped types in the picture on the right are more popular with our customers.



Our cable mesh series is manufactured from high strength stainless steel AISI 304, 304L, 316 or 316L. At the same time, these cables are available in 7 x 7, 7 x 19 or 1 x 19 structures, with diameters from 1.2 mm to 4mm. Other specifications can also be produced according to your design requirements.



Data Table Format for Stainless Steel Cable Mesh



Item No.s Cable Diameter Mesh Opening Size(W×H)
  inch mm inch mm
BZ-32120F 1/8 3.2 4.75 x 8.23 120 x 207.8
BZ-32102F 1/8 3.2 4 x 6.9 102 x 176.7
BZ-3290F 1/8 3.2 3.55 x 6.15 90 x 156
BZ-3276F 1/8 3.2 3 x5.2 76 x 131.6
BZ-3251F 1/8 3.2 2 x3.46 51 x88.3
BZ-24102F 3/32 2.4 4x6.9 102x176.7
BZ-2490F 3/32 2.4 3.55x6.15 90x 156
BZ-2476F 3/32 2.4 3 x 5.2 76x 131.6
BZ-2460F 3/32 2.4 2.4x 4.16 60x 104
BZ-2451F 3/32 2.4 2x3.46 51 x 88.3
BZ-2076F 5/64 2.0 3 x 5.2 76 x 131.6
BZ-2060F 5/64 2.0 2.4x 4.16 60 x 104
BZ-2051F 5/64 2.0 2 x 3.46 51 x 88.3
BZ-2038F 5/64 2.0 1-1/2 x 2.6 38 x 65.8
BZ-1676F 1/16 1.6 1.2 x2.08 76 x 131.6
BZ-1651F 1/16 1.6 2x 3.46 51 x 88.3
BZ-1638F 1/16 1.6 1-1/2 x 2.6 38 x 65.8
BZ-1630F 1/16 1.6 1.2x2.08 30 x 52
BZ-1625F 1/16 1.6 1 x 1.73 25.4 x 44
BZ-1238F 3/64 1.2 1-1/2x2.6 38 x 65.8
BZ-1230F 3/64 1.2 1.2 x 2.08 30 x 52
BZ-1225F 3/64 1.2 1 x 1.73 25.4 x 44
BZ-1220F 3/64 1.2 4/5 x 1.39 20 x 34.6



Cases of Stainless Steel Cable Mesh



Flexible Strong Stainless Steel Cable Mesh Wire Rope Deck Balustrade 0



Flexible Strong Stainless Steel Cable Mesh Wire Rope Deck Balustrade 1



Flexible Strong Stainless Steel Cable Mesh Wire Rope Deck Balustrade 2



Flexible Strong Stainless Steel Cable Mesh Wire Rope Deck Balustrade 3



































Flexible Strong Stainless Steel Cable Mesh Wire Rope Deck Balustrade 4
