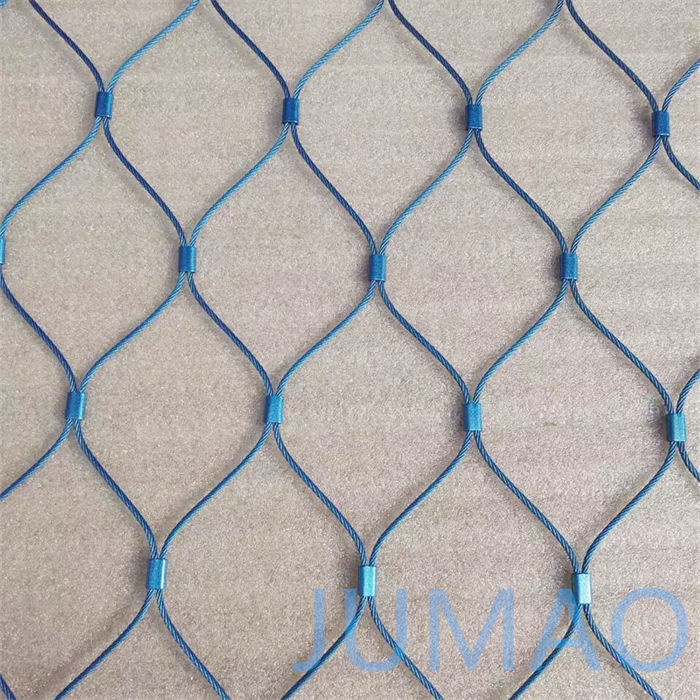

OEM X-Tend Safety Stainless Steel Cable Mesh Netting Blue 2mm
  • OEM X-Tend Safety Stainless Steel Cable Mesh Netting Blue 2mm
  • OEM X-Tend Safety Stainless Steel Cable Mesh Netting Blue 2mm

OEM X-Tend Safety Stainless Steel Cable Mesh Netting Blue 2mm

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-SSCM0989
Product Details
Product Name:
Stainless Steel Cable Mesh
Keyword:
X-Tend Stainless Steel Rope Mesh
Material:
Stainless Steel 304
Technology:
Clamps
Rope Diameter:
2mm
Hole Size:
10.0mm
Color:
Blue
Application:
Ceiling,Cladding,External Wall,etc.
Feature:
Flexible
Size:
Cutomized To Your Needs
Highlight:

OEM Stainless Steel Cable Mesh

,

2mm Stainless Steel Cable Mesh

,

2mm stainless steel cable netting

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
Price
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

X-Tend Safety Stainless Steel Cable Mesh With Blue Color





Connection Way Between stainless steel cable mesh and post.



-Between the pillars.

The details between the columns usually require many mesh panels. This results in a larger perimeter area and more connections, making it more expensive. However, the app is very attractive and very modern.

-In front of the column.

The most economical method is to lay out the cable network in detail in front of the column. This saves perimeter area, tensioner, and small holes. This option also provides more transparency. The net can be installed inside or outside.

-Through the post.

This effect is less common, but very interesting. A slot was made in the post and the mesh passed through this slot to give the railing a unique look. Grid installation can be more challenging, but the result is a beautiful transparent railing filled.



Installation & Test of Stainless Steel Cable Mesh​



Installing the grid on the railing can be done by a general contractor or a convenient individual. We also provide on-site installation training and support. In any case, it is important to have clear working drawings of the railings. This allows us to produce mesh sizes that make installation easier.

Climbing Resistant

The clamp ability requirements apply to railings for residential functions (hotels, residences, apartments, holiday homes, etc.) and educational functions (primary schools, nurseries, etc.). This requirement is to prevent children from climbing over the railing. Our cable network tests show that 60mm diamonds with a 1.5mm cable diameter meet this requirement.

Sandbag swing test.

Balustrades are often subjected to sandbag swing tests. In this test, according to the world standard, the method of pendulum test proves the safety of the railings. All parts of the railing are tested for strength. Stainless steel cable mesh has been proven to pass many tests. It is important that the connection to the edge structure is detailed. We would be happy to advise you in this regard.



Balustrade Infills With Stainless Steel Cable Mesh



Railing filler is an important and diverse field of application for stainless steel wire rope and stainless steel wire mesh. The balustrade filler can prevent falling and meet the construction requirements of low self-weight.

The railing was covered with wire ropes

A filamented railing filler made of stainless steel wire rope provides a transparent solution for installing I-SYS product programs with different thread types. Also for stairs, there are many options for matching the form connection.

  •

Our ropes and nets are regularly tested internally and externally.

Continuous production control according to the test and monitoring plan and regular monitoring by an independent testing organization.

Based on ISO, our products can be used in a variety of structural applications without the need for further testing.

In terms of safety applications, in most cases, stainless steel wire ropes are used as a step precaution for boundary structures, intermediate ropes and even stainless steel cable networks as well as for the safety of floor-to-ceiling stairs. In addition, for horizontal protection, I-SYS product solutions for wire ropes meet the requirements of many safety applications.



Data Table Format for Stainless Steel Cable Mesh



Item No.s Cable Diameter Mesh Opening Size(W×H)
  inch mm inch mm
BZ-32120F 1/8 3.2 4.75 x 8.23 120 x 207.8
BZ-32102F 1/8 3.2 4 x 6.9 102 x 176.7
BZ-3290F 1/8 3.2 3.55 x 6.15 90 x 156
BZ-3276F 1/8 3.2 3 x5.2 76 x 131.6
BZ-3251F 1/8 3.2 2 x3.46 51 x88.3
BZ-24102F 3/32 2.4 4x6.9 102x176.7
BZ-2490F 3/32 2.4 3.55x6.15 90x 156
BZ-2476F 3/32 2.4 3 x 5.2 76x 131.6
BZ-2460F 3/32 2.4 2.4x 4.16 60x 104
BZ-2451F 3/32 2.4 2x3.46 51 x 88.3
BZ-2076F 5/64 2.0 3 x 5.2 76 x 131.6
BZ-2060F 5/64 2.0 2.4x 4.16 60 x 104
BZ-2051F 5/64 2.0 2 x 3.46 51 x 88.3
BZ-2038F 5/64 2.0 1-1/2 x 2.6 38 x 65.8
BZ-1676F 1/16 1.6 1.2 x2.08 76 x 131.6
BZ-1651F 1/16 1.6 2x 3.46 51 x 88.3
BZ-1638F 1/16 1.6 1-1/2 x 2.6 38 x 65.8
BZ-1630F 1/16 1.6 1.2x2.08 30 x 52
BZ-1625F 1/16 1.6 1 x 1.73 25.4 x 44
BZ-1238F 3/64 1.2 1-1/2x2.6 38 x 65.8
BZ-1230F 3/64 1.2 1.2 x 2.08 30 x 52
BZ-1225F 3/64 1.2 1 x 1.73 25.4 x 44
BZ-1220F 3/64 1.2 4/5 x 1.39 20 x 34.6



Cases of Stainless Steel Cable Mesh



OEM X-Tend Safety Stainless Steel Cable Mesh Netting Blue 2mm 0



OEM X-Tend Safety Stainless Steel Cable Mesh Netting Blue 2mm 1



OEM X-Tend Safety Stainless Steel Cable Mesh Netting Blue 2mm 2



OEM X-Tend Safety Stainless Steel Cable Mesh Netting Blue 2mm 3



































OEM X-Tend Safety Stainless Steel Cable Mesh Netting Blue 2mm 4
