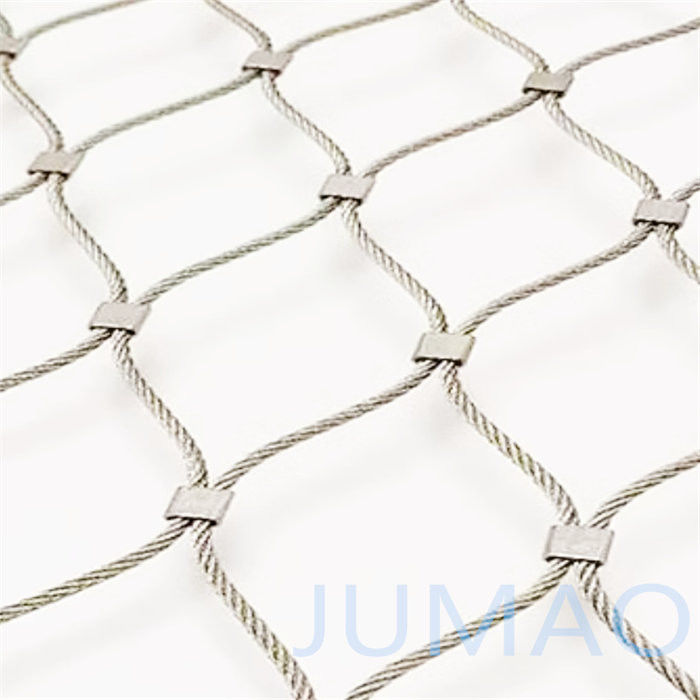

Animal Fence 316 Stainless Steel Cable Mesh Wire Rope Netting
  • Animal Fence 316 Stainless Steel Cable Mesh Wire Rope Netting
  • Animal Fence 316 Stainless Steel Cable Mesh Wire Rope Netting

Animal Fence 316 Stainless Steel Cable Mesh Wire Rope Netting

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-SSCM0991
Product Details
Product Name:
Stainless Steel Cable Mesh
Keyword:
X-Tend SS Rope Mesh
Material:
304&316
Technology:
Twist/Clamps
Rope Diameter:
3.0mm
Hole Size:
12.0mm
Color:
Silver
Application:
Animal Fence
Feature:
Flexible
Size:
2m*20m
Highlight:

316 Stainless Steel Cable Mesh

,

Stainless Steel Cable Mesh Netting

,

316 steel cable mesh

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
Price
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

Animal Fence Stainless Steel Cable Mesh Wire Rope Netting





Stainless Steel Cable Mesh- Façade



Stainless steel cables and cable mesh are a light and transparent possibility for fall protection on the surface. Due to the high transparency, a comprehensive protection with no or only low reduced field of view and light transmission is possible. Compared with large building packaging materials, they can also be used for light construction due to their light weight.

Combined mesh diamond

Sometimes, a combination of mesh orientation and/or width is used for surface safety. They can be connected via an intermediate cable, or they can be connected directly to each other. Safety regulations lead to the combination of these grids. As an alternative to the railing, the mesh must meet the requirements of the railing and reach the height specified by the railing. On top of that, the grid width can be higher, which allows for greater transparency, which allows for better views as well as greater openness.

Radar reflection damping

At airports, radar systems are used to ensure flight safety. To avoid interfering with these systems, the facades of surrounding buildings must be designed so that no double reflection or direct reflection of radiation will occur. Therefore, it is recommended to set up an inclined plane to deflect the radiation to the ground. In addition, circular facade elements are preferred because they redirect radiation in many different directions rather than reflecting them due to their shape. Jumao's stainless steel wire rope mesh meets these requirements with its circular cable geometry and can be easily adjusted due to changes in mesh width and Angle.



More Details Of Stainless Steel Cable Mesh



-Materials

Our stainless steel wire mesh can be made of 304,316 or 316L stainless steel. The color can be standard or oxidized black. Black oxidized stainless steel is widely used in areas with direct sunlight because of its sun-absorbing properties, which will make the eyes feel comfortable.

-Cable diameter and structure

Stainless steel cable diameter is 1.2mm, 1.5mm, 2.0mm, 2.4mm and 3mm, can produce the required mesh.

The cable structure is available in 7*7 or 7*19, you can also choose.

Stainless steel chain

-Mesh/width

Along with the cable diameter, the mesh width contributes to aesthetics such as transparency level, so the larger the width, the more transparent. Another consideration is the ability to climb, especially in public places, which should be taken into account. Our net width ranges from 24 mm to 300 mm.

-Fonts and borders

Loops or woven nets are available.

Boundaries and endpoints can be configured differently.

-Standard Specification

A standard specification often used for balustrading is:
316 grade stainless steel ferrule type mesh, 2mm 7x7 wire, horizontal 50 x 87 mm opening size.



Service For Stainless Steel Cable Mesh



Transportation and delivery

We have many shipping options available, express Mail and Express 1-2 day delivery time or economy priced Standard Mail will take around 3-5 business days depending on location. International customers please select Standard Post and DHL or email your request and we will send you a quote including shipping costs.



Payment method

At Jumao, we offer a range of payment options. Use your credit card or PayPal balance to secure credit card payments through "SHOPIFY payments" or PayPal. If you wish to pay for your pick-up order by electronic remittance or cash, please send your order by email



Need help

Write to us or call us. We'd love to hear about your experience and answer any questions. Your questions and opinions are important to us.



Data Table Format for Stainless Steel Cable Mesh



Item No.s Cable Diameter Mesh Opening Size(W×H)
  inch mm inch mm
BZ-32120F 1/8 3.2 4.75 x 8.23 120 x 207.8
BZ-32102F 1/8 3.2 4 x 6.9 102 x 176.7
BZ-3290F 1/8 3.2 3.55 x 6.15 90 x 156
BZ-3276F 1/8 3.2 3 x5.2 76 x 131.6
BZ-3251F 1/8 3.2 2 x3.46 51 x88.3
BZ-24102F 3/32 2.4 4x6.9 102x176.7
BZ-2490F 3/32 2.4 3.55x6.15 90x 156
BZ-2476F 3/32 2.4 3 x 5.2 76x 131.6
BZ-2460F 3/32 2.4 2.4x 4.16 60x 104
BZ-2451F 3/32 2.4 2x3.46 51 x 88.3
BZ-2076F 5/64 2.0 3 x 5.2 76 x 131.6
BZ-2060F 5/64 2.0 2.4x 4.16 60 x 104
BZ-2051F 5/64 2.0 2 x 3.46 51 x 88.3
BZ-2038F 5/64 2.0 1-1/2 x 2.6 38 x 65.8
BZ-1676F 1/16 1.6 1.2 x2.08 76 x 131.6
BZ-1651F 1/16 1.6 2x 3.46 51 x 88.3
BZ-1638F 1/16 1.6 1-1/2 x 2.6 38 x 65.8
BZ-1630F 1/16 1.6 1.2x2.08 30 x 52
BZ-1625F 1/16 1.6 1 x 1.73 25.4 x 44
BZ-1238F 3/64 1.2 1-1/2x2.6 38 x 65.8
BZ-1230F 3/64 1.2 1.2 x 2.08 30 x 52
BZ-1225F 3/64 1.2 1 x 1.73 25.4 x 44
BZ-1220F 3/64 1.2 4/5 x 1.39 20 x 34.6



Cases of Stainless Steel Cable Mesh



Animal Fence 316 Stainless Steel Cable Mesh Wire Rope Netting 0



Animal Fence 316 Stainless Steel Cable Mesh Wire Rope Netting 1



Animal Fence 316 Stainless Steel Cable Mesh Wire Rope Netting 2



Animal Fence 316 Stainless Steel Cable Mesh Wire Rope Netting 3



































Animal Fence 316 Stainless Steel Cable Mesh Wire Rope Netting 4
