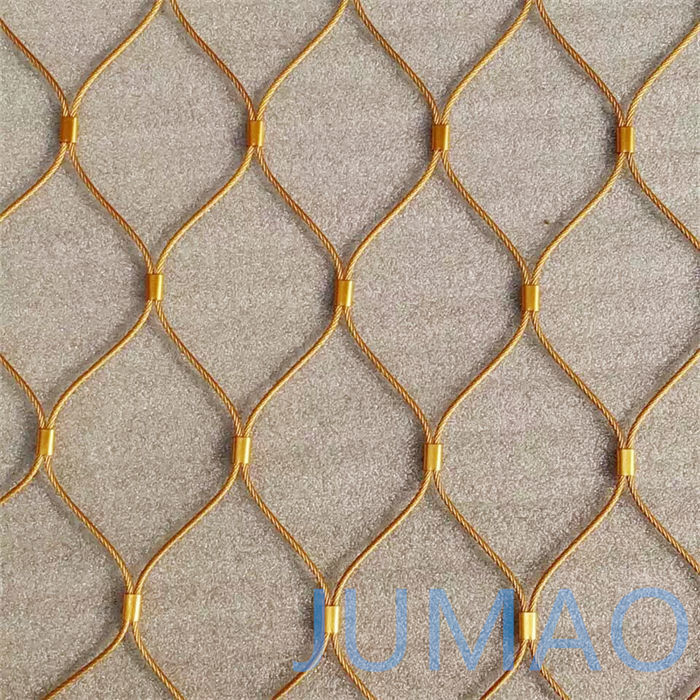

Antifalling 304 Stainless Steel Wire Rope Mesh Net Cable Flexible
  • Antifalling 304 Stainless Steel Wire Rope Mesh Net Cable Flexible
  • Antifalling 304 Stainless Steel Wire Rope Mesh Net Cable Flexible

Antifalling 304 Stainless Steel Wire Rope Mesh Net Cable Flexible

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-SSCM0990
Product Details
Product Name:
Stainless Steel Cable Mesh
Keyword:
X-Tend Stainless Steel Rope Mesh
Material:
Stainless Steel 304&316
Technology:
Clamps
Rope Diameter:
2.6mm
Hole Size:
12mm
Color:
Golden
Application:
Decoration & Safty Guard
Feature:
Flexible
Advantage:
Anti-falling
Highlight:

Antifalling stainless steel wire rope mesh net

,

Flexible stainless steel wire rope mesh net

,

304 flexible stainless steel cable netting

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
Price
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

Anti-falling 304 Grade Stainless Steel Cable Mesh For Architecture





High forces of stainless steel cable mesh



Our wire mesh is strong enough to withstand a lot of force. For example, our cable network load of 3kn line load is no exception. The mesh can withstand tilts, kicks and falls. Jumao cable networks are therefore used in the most extreme cases where safety must be guaranteed. All loads are generally transferred to the boundary structure.



The cable net is stretched on the cable, and the pretension is about. 30 to 40 kilograms per meter. The boundary cable also has a certain pretension. The magnitude of this deviation is determined in part by the distance from the center of the passing eye to the center and the desired depression of the boundary cable between the two eyes.

If a person (or another load) pushes or falls on the grid, the force is transferred through the edge structure to the attachment point. In addition, in outdoor conditions, forces are generated due to loads such as ice and wind. It is important that the fastening eyes are strong enough to absorb force. In addition, fastening components must be able to transmit forces to structural columns, walls, and floors.



We can help you with the details of the grid. If necessary, our engineers will carry out static calculations.



About Jumao Stainless Steel Cable Mesh



Many years ago, Jumao proposed an innovative architectural element that combines conservation with aesthetic design: the X-TEND. The potential applications of stainless steel mesh are very varied both indoors and outdoors. Among other things, it is used as a railing filler, horizontal or vertical fall protection, divider, facade cladding, green wall system or very flexible design element. Architecturally ambitious animal solutions, such as lightweight, free-flying aviaries or large cat enclosures with three-dimensional curvilinear geometry, are also built using X-TEND stainless steel mesh. They are just one of the many specialties of Jumao's experienced planners and wire rope experts.

The price.

The cost of our Jumao stainless steel mesh depends on factors such as diamond size, cable diameter, shape and overall quantity. Please contact us for current pricing options.

Delivery time.

Jumao's delivery time depends on the mesh type, complexity, and overall quantity. Delivery times vary from stock to a few weeks. Call or email us for more specific delivery times.

Quotes.

Each project is unique. Our sales team can prepare a quote for your specific application. Please contact us to discuss your project. We'd be happy to help you.



Choose your stainless steel cable mesh from Jumao



Our stainless steel cable mesh is ideal for construction, security, agriculture and other applications.



It consists of stainless steel cables and sleeves that form an elastic metal fabric that forms a diamond pattern when installed. Diamond sizes range from 20 mm to 200 mm and cable diameters from 1.2 mm to 3 mm to meet your design requirements.

It is very strong and transparent, and almost disappears after installation. It is non-combustible and allows plenty of light and airflow, so it functions well in parking lots and fire escapes.



Our stainless steel wire mesh is a sustainable building element. It is maintenance-free, corrosion-resistant and does not require aggressive cleaners or coatings. It is particularly suited to the harshest climates.



Its ability to act as a three-dimensional structural element reduces the need for traditional building materials while allowing for high load capacity and large spans. Its unique 3-D features allow for amazing design flexibility. The result is a light, scalable, low-quality structure that greatly reduces material and installation costs.



Our stainless steel wire mesh applications include railings, vertical green walls, zoo fences, aviary netting and security applications.



Our wire mesh is customized according to your specific requirements. The following factors need to be considered.



Data Table Format for Stainless Steel Cable Mesh



Item No.s Cable Diameter Mesh Opening Size(W×H)
  inch mm inch mm
BZ-32120F 1/8 3.2 4.75 x 8.23 120 x 207.8
BZ-32102F 1/8 3.2 4 x 6.9 102 x 176.7
BZ-3290F 1/8 3.2 3.55 x 6.15 90 x 156
BZ-3276F 1/8 3.2 3 x5.2 76 x 131.6
BZ-3251F 1/8 3.2 2 x3.46 51 x88.3
BZ-24102F 3/32 2.4 4x6.9 102x176.7
BZ-2490F 3/32 2.4 3.55x6.15 90x 156
BZ-2476F 3/32 2.4 3 x 5.2 76x 131.6
BZ-2460F 3/32 2.4 2.4x 4.16 60x 104
BZ-2451F 3/32 2.4 2x3.46 51 x 88.3
BZ-2076F 5/64 2.0 3 x 5.2 76 x 131.6
BZ-2060F 5/64 2.0 2.4x 4.16 60 x 104
BZ-2051F 5/64 2.0 2 x 3.46 51 x 88.3
BZ-2038F 5/64 2.0 1-1/2 x 2.6 38 x 65.8
BZ-1676F 1/16 1.6 1.2 x2.08 76 x 131.6
BZ-1651F 1/16 1.6 2x 3.46 51 x 88.3
BZ-1638F 1/16 1.6 1-1/2 x 2.6 38 x 65.8
BZ-1630F 1/16 1.6 1.2x2.08 30 x 52
BZ-1625F 1/16 1.6 1 x 1.73 25.4 x 44
BZ-1238F 3/64 1.2 1-1/2x2.6 38 x 65.8
BZ-1230F 3/64 1.2 1.2 x 2.08 30 x 52
BZ-1225F 3/64 1.2 1 x 1.73 25.4 x 44
BZ-1220F 3/64 1.2 4/5 x 1.39 20 x 34.6



Cases of Stainless Steel Cable Mesh



Antifalling 304 Stainless Steel Wire Rope Mesh Net Cable Flexible 0



Antifalling 304 Stainless Steel Wire Rope Mesh Net Cable Flexible 1



Antifalling 304 Stainless Steel Wire Rope Mesh Net Cable Flexible 2



Antifalling 304 Stainless Steel Wire Rope Mesh Net Cable Flexible 3

















































Antifalling 304 Stainless Steel Wire Rope Mesh Net Cable Flexible 4
