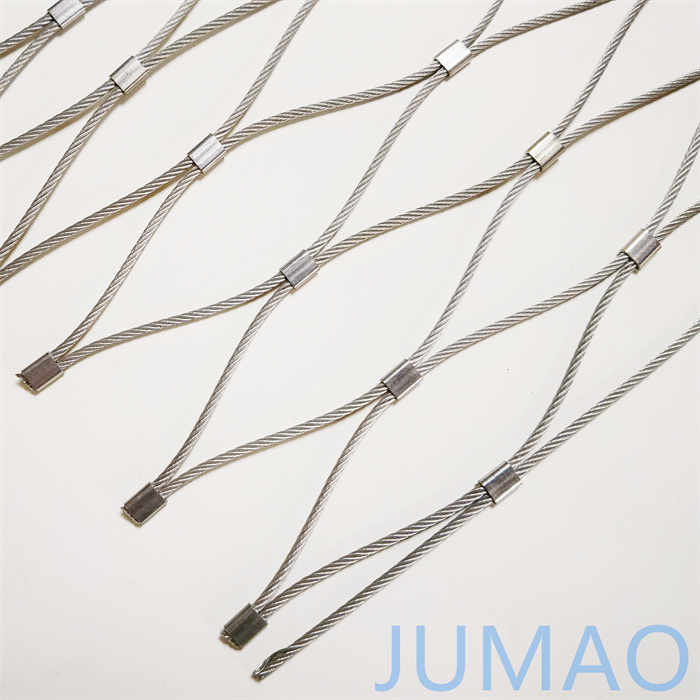

4mm 316 Stainless Steel Cable Mesh Rope Net ODM

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-SSCM0988
Product Details
Product Name:
Stainless Steel Cable Mesh
Keyword:
X-Tend Stainless Steel Rope Mesh
Material:
Stainless Steel 304&316
Technology:
Twist/Clamps
Rope Diameter:
0.8-4mm
Hole Size:
8.0mm
Color:
Red/ Blue/ Yellow/ Silver/ Golden,etc.
Application:
Ceiling,Cladding,External Wall,etc.
Feature:
Flexible
Size:
Cutomized
Highlight:

4mm Stainless Steel Cable Mesh

,

ODM Stainless Steel Cable Mesh

,

4mm stainless steel rope net

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
Price
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

2mm 316 Grade Safety Stainless Steel Cable Mesh For Construction





Application & Features of stainless steel cable mesh



Application of stainless steel cable mesh

  1. Fall Protection

Stainless steel mesh railings are used for Bridges, stairs and paths. These nets have high strength and impact resistance, effectively reducing potential fall accidents.

  1. Architecture

Ideal for use as building facades and green walls to promote the growth of climbing plants, often seen in parking lots and urban greenways.

  1. Animal & Bird Enclosure

Also known as zoo netting and aviary netting, stainless steel cable netting is perfect for animal and bird fencing as it is flat and flexible to prevent impact damage.

  1. Fences & Safety Fabric

Stainless steel cable nets can also be used as garden fences, security fences in stadiums, partition fences, and safety nets to maximize suicide prevention.

Features of stainless steel cable mesh

High strength, high toughness of high-quality stainless steel material.



---- high quality materials



Flexible stainless steel construction, high impact resistance and load capacity.



---- High flexibility



The excellent corrosion resistance makes these cable networks ideal for use under the harshest conditions.



-- Anticorrosion

Our cable network has strong environmental resistance and can be used for many years.



-- Long life



Competitive prices, low or even no maintenance and long life allow for high cost effectiveness.



---- cost-effectiveness



Borg stainless steel cable NetEase for installation, disassembly and reinstallation.



---- easy to install



What is stainless steel cable mesh?



More and more railings are being fitted with wire mesh. This transparent railing filler is strong and durable enough to meet all requirements. Due to the flexibility of the grid, existing railings can be easily updated. The industrial and modern "look" completes it.

The cable mesh can be stretched between, in front of, or through the posts. In addition, you can choose to tension the mesh between boundary cables or tubular frames. There are also a wide variety of options detailing seals and corners. You can also choose different grid orientations. Check out the options below.

-The size of the grid.

The size of the mesh is called the diamond size. For railings, a horizontal cable mesh of 1.5mm or 2.0mm cable diameter and 60 mm diamond size is generally used. Other diamond sizes are possible, but not as common on railings.

  • The cable network is made of stainless steel AISI316. We can guarantee 100% quality through ISO certification. For railing applications, this steel quality is technically the best solution for price and delivery time.

Stainless Steel Cable Mesh- Façade



Stainless steel cables and cable mesh are a light and transparent possibility for fall protection on the surface. Due to the high transparency, a comprehensive protection with no or only low reduced field of view and light transmission is possible. Compared with large building packaging materials, they can also be used for light construction due to their light weight.

Combined mesh diamond

Sometimes, a combination of mesh orientation and/or width is used for surface safety. They can be connected via an intermediate cable, or they can be connected directly to each other. Safety regulations lead to the combination of these grids. As an alternative to the railing, the mesh must meet the requirements of the railing and reach the height specified by the railing. On top of that, the grid width can be higher, which allows for greater transparency, which allows for better views as well as greater openness.

Radar reflection damping

At airports, radar systems are used to ensure flight safety. To avoid interfering with these systems, the facades of surrounding buildings must be designed so that no double reflection or direct reflection of radiation will occur. Therefore, it is recommended to set up an inclined plane to deflect the radiation to the ground. In addition, circular facade elements are preferred because they redirect radiation in many different directions rather than reflecting them due to their shape. Jumao's stainless steel wire rope mesh meets these requirements with its circular cable geometry and can be easily adjusted due to changes in mesh width and Angle.



Data Table Format for Stainless Steel Cable Mesh



Item No.s Cable Diameter Mesh Opening Size(W×H)
  inch mm inch mm
BZ-32120F 1/8 3.2 4.75 x 8.23 120 x 207.8
BZ-32102F 1/8 3.2 4 x 6.9 102 x 176.7
BZ-3290F 1/8 3.2 3.55 x 6.15 90 x 156
BZ-3276F 1/8 3.2 3 x5.2 76 x 131.6
BZ-3251F 1/8 3.2 2 x3.46 51 x88.3
BZ-24102F 3/32 2.4 4x6.9 102x176.7
BZ-2490F 3/32 2.4 3.55x6.15 90x 156
BZ-2476F 3/32 2.4 3 x 5.2 76x 131.6
BZ-2460F 3/32 2.4 2.4x 4.16 60x 104
BZ-2451F 3/32 2.4 2x3.46 51 x 88.3
BZ-2076F 5/64 2.0 3 x 5.2 76 x 131.6
BZ-2060F 5/64 2.0 2.4x 4.16 60 x 104
BZ-2051F 5/64 2.0 2 x 3.46 51 x 88.3
BZ-2038F 5/64 2.0 1-1/2 x 2.6 38 x 65.8
BZ-1676F 1/16 1.6 1.2 x2.08 76 x 131.6
BZ-1651F 1/16 1.6 2x 3.46 51 x 88.3
BZ-1638F 1/16 1.6 1-1/2 x 2.6 38 x 65.8
BZ-1630F 1/16 1.6 1.2x2.08 30 x 52
BZ-1625F 1/16 1.6 1 x 1.73 25.4 x 44
BZ-1238F 3/64 1.2 1-1/2x2.6 38 x 65.8
BZ-1230F 3/64 1.2 1.2 x 2.08 30 x 52
BZ-1225F 3/64 1.2 1 x 1.73 25.4 x 44
BZ-1220F 3/64 1.2 4/5 x 1.39 20 x 34.6



Cases of Stainless Steel Cable Mesh



4mm 316 Stainless Steel Cable Mesh Rope Net ODM 0



4mm 316 Stainless Steel Cable Mesh Rope Net ODM 1



4mm 316 Stainless Steel Cable Mesh Rope Net ODM 2



4mm 316 Stainless Steel Cable Mesh Rope Net ODM 3



































4mm 316 Stainless Steel Cable Mesh Rope Net ODM 4
