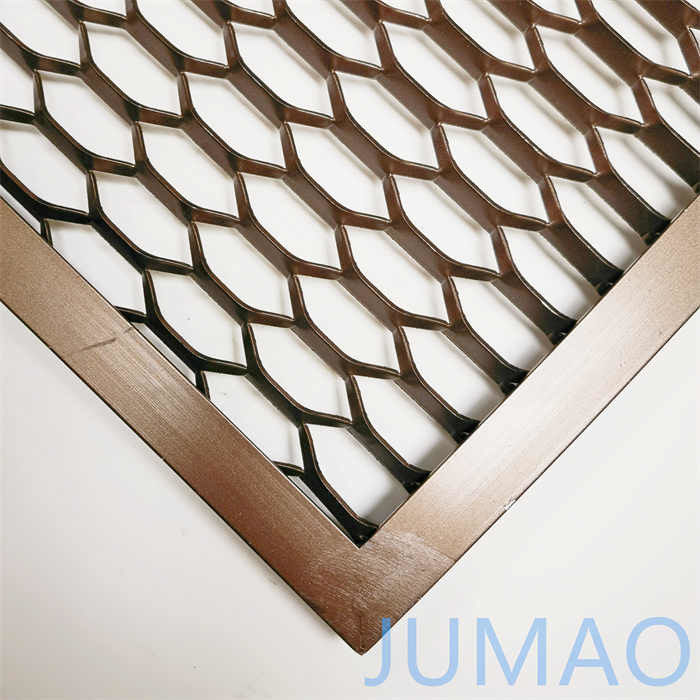

PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels
  • PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels
  • PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels
  • PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels
  • PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels

PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-EMC0974
Product Details
Product Name:
Architectural Expanded Metal
Expanded Metal
Raw Material:
Mild Steel Or Aluminum
Allows For Free Passage Of Light And Sound
Hole Style:
Surface Treatment:
0.38' *0.76'
Wall Panels

PVDF expanded metal sheet 4x8


expanded metal sheet 4x8 Mesh


PVDF xpm mesh

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels



Architectural Expanded Metal: A highly versatile building material


Expanded metal is a sheet metal that is processed into a mesh structure. Jumao's extended metal imparts a strong sense of solidity, achieved by expanding the openings of the mesh. It offers functionality and style and can be used in a wide variety of Settings, from exterior to ceiling to zoning. Since the expanded metal is formed by stretching the cut on the metal plate, there is no loss or waste from the stamping of the metal plate, and the area of the processed material is greater than the area of the original material. Therefore, in recent years, expanded metal as an environmentally friendly material has received more and more attention. The expanding metal forms an undulating three-dimensional network. Available base materials include aluminum and stainless steel, and a variety of finishes can also be applied, including paint and anodizing. This image shows aluminum expanded metal finished with polyurethane resin paint.

Expanded metal can be used in a variety of environments, and its appearance can be transformed according to how this building material is processed and adapted. At Jumao, we offer fully customized services, tailored to customer needs or project requirements. We also offer semi-custom collections that enable customers who are unfamiliar with working with metal materials to choose the most suitable option from a range of pre-determined patterns. Please contact us to discuss your needs.


Application Of Architectural Expanded Metal


External use

In an external setting, extended metal plates can act as shutters. Expanded metal offers many functions as an environmentally friendly building material: while its mesh structure ensures adequate daylight filtration, at the same time it provides sufficient sun blocking to prevent indoor temperatures from rising.

In addition to the superlative features, the expanded metal is also eye-catching, giving the facades a striking look. Strand width, in other words, the width of the metal strand between each opening, can be adjusted as needed; A wider line width will result in a solid surface, while a narrower line width will create a softer look that is closer to a fine grid. The appearance of the expanded metal also changes depending on the Angle from which it is viewed and the time of day.

  • "We wanted to remove the tile to reveal the full height of the ceiling, but we also didn't want to show the light fixtures and air conditioning." Jumao's extended metal ceiling is the ideal solution to this customer dilemma, as it is the third ceiling option that combines the benefits of a suspended ceiling and an open ceiling. The expanded metal provides adequate concealment for the pipes, while the sharp and airy design opens up the space.
  • The properties of expanded metal also make it suitable for partition walls. As a material, it has good air permeability and breathability, which ensures adequate circulation and visibility. This helps to achieve a comfortable indoor environment. Extended metal partitions can reduce the sense of pressure that exists in certain Spaces while still providing adequate line of sight barriers.

Where are architectural expanded metals available?


Architectural Expanded metal facades are lightweight walls commonly used in modern large or high-rise buildings to protect and decorate exterior walls. Decorative expanded metal is a popular facade material with wide perforations and diverse colors, widely used in shopping malls, commercial buildings, hotels, parking lots and other public buildings.


The expanded metal facade is generally made of 3mm-5mm thick aluminum plate, which is light and strong. Anodized or PVDF coated expanded metal not only has an attractive appearance, but also has excellent weather resistance and a long service life. As a result, it is becoming increasingly popular among architects and designers


Simply contact us and our experienced team will provide you with a customized expanded facade solution.


Features of architectural expanded metal

-Light and strong construction. It relieves the burden on the exterior walls and can withstand severe weather erosion.

-Ventilate. The uniform opening allows light and air to pass through freely.

-Modern decoration style. There are a variety of passes and colors to give the building a unique decorative effect.

-Long service life. Anodized or PVDF coating for corrosion and UV resistance.

Easy to install and maintenance free


Data Table Format for Architectural Expanded Metal


Recommended Expanded Metal Facade Specification


Thickness (mm)

Strand Width (mm)

SWD (mm)

LWD (mm)

Recommended Size: Width × Length (mm)


Size 1

Size 2

Aluminum 2, 2.5, 3 8, 9, 10 34 75 1220 × 2000 2400×1200
2, 2.5, 3 8, 9, 10 40 80 1220 × 2000 2400×1200
2, 2.5, 3 10, 12, 15 50 110 1220 × 2000 2400 ×1200
2, 2.5, 3 16, 18, 20 63 150 1220 × 2000 2400 × 1200
2, 2.5, 3 25, 28, 30 80 200 1220 × 2000 2400 × 1200 Hexagonal (knuckle about 40 mm)
2, 2.5, 3 25, 28, 30 95 250 1220 × 2000 2400 × 1200
2, 2.5, 3 25, 28, 30 95 300 1220 × 2000 2400 × 1200
  • Frame size: aluminum angle: 30 × 30 × 2 mm and above; for large size, 3 mm thickness is recommended; the large the frame, the thicker the aluminum angle.
  • Other sizes are available upon request.
Recommended Expanded Metal Ceiling Specifications


Cases of Architectural Expanded Metal


PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels 0


PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels 1


PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels 2


PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels 3














PVDF Expanded Metal Sheet 4x8 XPM Mesh Wall Panels 4
