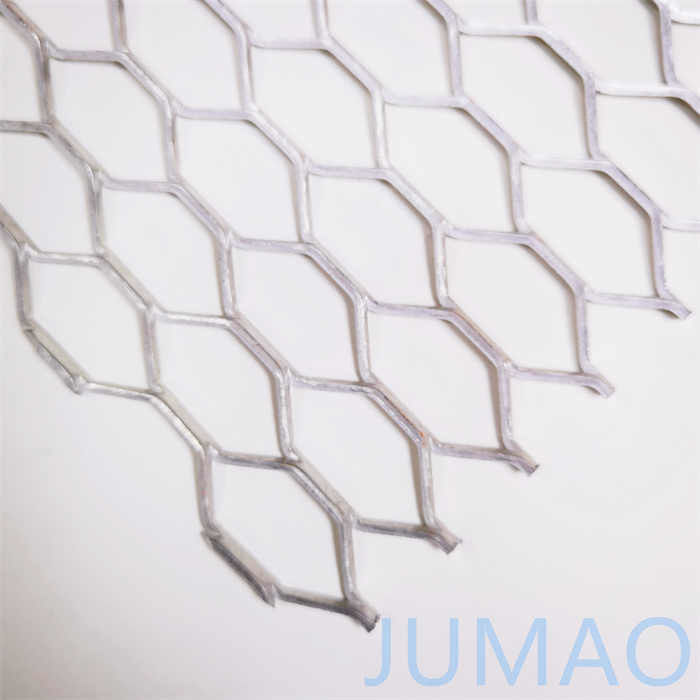

High Strength Architectural Expanded Metal Sheets For Building Fence
  • High Strength Architectural Expanded Metal Sheets For Building Fence
  • High Strength Architectural Expanded Metal Sheets For Building Fence
  • High Strength Architectural Expanded Metal Sheets For Building Fence
  • High Strength Architectural Expanded Metal Sheets For Building Fence

High Strength Architectural Expanded Metal Sheets For Building Fence

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-EMC0983
Product Details
Product Name:
Architectural Expanded Metal
Keyword:
Expanded Metal Fence
Using:
Building Fence
Feature:
High Strength
Finish:
Anodized, Galvanized, Painting,etc.
Color:
Al Original Color
Material:
Carbon Steel
Length:
6'
Width:
3'
Application:
Ventilation
Highlight:

Architectural Expanded Metal Fence

,

Architectural Expanded Metal Sheets

,

Building Fence expanding metal sheets

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
Price
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

High Strength Architectural Expanded Metal Sheets For Building Fence





Features Of Architectural Expanded Metal Mesh



Building Expansion metal is made from a single piece of metal that is die-cut and stretched into a diamond pattern with an architectural sheen. It is light weight, strong, beautiful and can be used for decorative and functional applications. The pattern of the expanded metal sheet provides an attractive design while ensuring safety, control of light, heat, and visibility.

Features of our building expanded metal:

1.Light weight

2.mighty

3.rigidity

4.Allow air, light, heat and sound to pass through freely

5.Adapt to finishing process

6.aesthetics

7.Available in flat or standard style

8.Suitable for decorative and functional use

9.Available in many materials such as aluminum, carbon steel, galvanized, stainless steel and aluminum expanded metals



Where are architectural expanded metals available?



Architectural Expanded metal facades are lightweight walls commonly used in modern large or high-rise buildings to protect and decorate exterior walls. Decorative expanded metal is a popular facade material with wide perforations and diverse colors, widely used in shopping malls, commercial buildings, hotels, parking lots and other public buildings.



The expanded metal facade is generally made of 3mm-5mm thick aluminum plate, which is light and strong. Anodized or PVDF coated expanded metal not only has an attractive appearance, but also has excellent weather resistance and a long service life. As a result, it is becoming increasingly popular among architects and designers



Simply contact us and our experienced team will provide you with a customized expanded facade solution.



Features of architectural expanded metal

-Light and strong construction. It relieves the burden on the exterior walls and can withstand severe weather erosion.

-Ventilate. The uniform opening allows light and air to pass through freely.

-Modern decoration style. There are a variety of passes and colors to give the building a unique decorative effect.

-Long service life. Anodized or PVDF coating for corrosion and UV resistance.

Easy to install and maintenance free



JUMAO architectural expanded metal



Architects and developers use architectural grids in a range of interior and exterior projects, from decorative features and interior wall displays to large building cladding and facades.



The expanded metal mesh provides a controlled profile for surfaces including ceilings, cladding, screens and columns, and because this material controls the movement of light and air, it offers functional and aesthetic advantages.



The expanded metal mesh can also reduce a building's solar gain by blocking the sun's rays from moving through the day. The expansion process creates angled, louvered holes inside the material that act as multiple miniature shadows. The holes are created without wasting any material.



A variety of materials, colors, patterns, finishes and textures are available to control the flow of light and air, which can reduce a building's solar gain. Uses include ceilings, screens and cladding

We can also offer a variety of finishing options including galvanizing, polyester powder coating and anodizing.



In addition, we offer a range of metalworking services to assist suppliers, contractors and end users with their projects, including welding, cutting and drilling.



Data Table Format for Architectural Expanded Metal



Recommended Expanded Metal Facade Specification

Material

Thickness (mm)

Strand Width (mm)

SWD (mm)

LWD (mm)

Recommended Size: Width × Length (mm)

Remarks

Size 1

Size 2

Aluminum 2, 2.5, 3 8, 9, 10 34 75 1220 × 2000 2400×1200
2, 2.5, 3 8, 9, 10 40 80 1220 × 2000 2400×1200
2, 2.5, 3 10, 12, 15 50 110 1220 × 2000 2400 ×1200
2, 2.5, 3 16, 18, 20 63 150 1220 × 2000 2400 × 1200
2, 2.5, 3 25, 28, 30 80 200 1220 × 2000 2400 × 1200 Hexagonal (knuckle about 40 mm)
2, 2.5, 3 25, 28, 30 95 250 1220 × 2000 2400 × 1200
2, 2.5, 3 25, 28, 30 95 300 1220 × 2000 2400 × 1200
  • Frame size: aluminum angle: 30 × 30 × 2 mm and above; for large size, 3 mm thickness is recommended; the large the frame, the thicker the aluminum angle.
  • Other sizes are available upon request.
Recommended Expanded Metal Ceiling Specifications



Cases of Architectural Expanded Metal



High Strength Architectural Expanded Metal Sheets For Building Fence 0



High Strength Architectural Expanded Metal Sheets For Building Fence 1



High Strength Architectural Expanded Metal Sheets For Building Fence 2



High Strength Architectural Expanded Metal Sheets For Building Fence 3



























High Strength Architectural Expanded Metal Sheets For Building Fence 4
