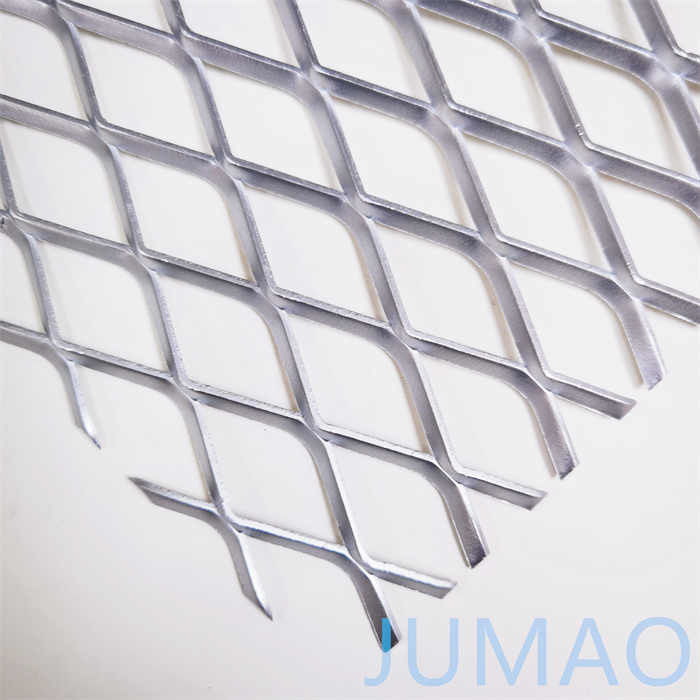

OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering
  • OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering
  • OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering
  • OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering
  • OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering

OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-EMC0984
Product Details
Product Name:
Architectural Expanded Metal
Keyword:
Expanded Metal Coverings
Using:
Building Coverings
LWD:
80mm
SWD:
40mm
Color:
Al Original Color
Material:
Al Alloy
Strand:
2mm
Finish:
PVDF
Application:
Architecture Applications
Highlight:

OEM architectural expanded mesh

,

4x8 architectural expanded mesh

,

OEM expanded metal sheet 4x8

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
Price
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering





The application of architectural expanded metal mesh in construction



Each of Jumao's extended metal mesh patterns can be used as a protective panel with sun protection, railings, facade cladding, fences, false ceilings and furniture.



Depending on its architectural application, the extended metal mesh guarantees visual transparency and partial coverage, as well as alternations between full and empty, curvature and flat elements. All of this brings elegance and important soundproofing comfort to the environment.



Jumao can provide standard or custom sized extension metal plates with different design forms. We can also provide you with design support from facade cladding to material supply.



In fact, the different types of expanded metal mesh are grouped according to shape and configuration. Their patterns provide a unique and creative way to filter light while providing a striking visual appearance through dimension and optical illusions. In addition, its excellent resistance and flexibility of use make the expanded metal an evergreen solid and sturdy product that is not afraid of the passage of time.



Benefits Of Architectural Expanded Metal



The expanded mesh may be considered among the greenest metal products on the market today. The metal coil is slit and stretched in one motion, therefore there is no scrap generated in the cold process, in which mechanical energy and cutting blades are used without welding. Therefore, production processes for expanded metal create zero waste, raw material is stretched by up to five times. We save material and, at the same time, we reduce carbon impact as well as environmental damage. This also means lower costs for us and for you if you choose expanded metal for your projects. In fact, a sunshade or a building envelope can greatly reduce interior cooling cost, while maintaining beneficial solar gain for heating cost reduction.

In other words, expanded metal improves the quality of life and makes it more sustainable, balancing the relationship between indoor and outdoor spaces. Finally, expanded metal mesh provides control of heating, cooling and lighting.

Discover all the types of Fratelli Mariani expanded metal meshes, and contact us for personalized advice. Together we will find the right product for your architectural project.



Expansion mesh may be considered one of the most environmentally friendly metal products on the market today. The metal coils are cut and stretched in a single motion, so there is no waste generated during cold working, in which no mechanical energy and cutting blades are used for welding. As a result, the production process of the expanded metal produces zero waste and the raw material is stretched up to five times. We save materials while reducing carbon emissions and environmental damage. It also means lower costs for us and for you if you choose to extend metal for your project. In fact, shading or building enclosures can greatly reduce indoor cooling costs while maintaining beneficial solar gains to reduce heating costs.



In other words, expanded metal improves the quality of life, making it more sustainable and balancing the relationship between indoor and outdoor Spaces. Finally, the expanded metal mesh provides control of heating, cooling and lighting.



Learn about all types of Jumao extended metal mesh and contact us for personalized advice. Together we will find the right product for your construction project.



Application Of architectural expanded metal



As a construction metal manufacturer, we offer construction expansion metals that can be used in a variety of construction metal projects. It has many practical benefits, including increased security and privacy, improved ventilation and aesthetics. We offer carbon steel, galvanized, stainless steel and aluminum expanded metals in a variety of sizes, weights and surface treatments.

Due to its light weight and high strength, construction expansion metal is ideal for many applications. Some common applications of building expanded metal include:

Expanded metal sunscreen

Extended metal room divider

Metal building facade extension

Extended metal security partition

Expanded metal sign plate

Expanded metal chamber plate

Expanded metal cladding

Expanded metal grille

Expanded metal siding

Telescopic metal frame

Expanded metal ceiling brick

Extended metal trim features

Extended metal display unit

Expanded metal filler plate



Data Table Format for Architectural Expanded Metal



Recommended Expanded Metal Facade Specification

Material

Thickness (mm)

Strand Width (mm)

SWD (mm)

LWD (mm)

Recommended Size: Width × Length (mm)

Remarks

Size 1

Size 2

Aluminum 2, 2.5, 3 8, 9, 10 34 75 1220 × 2000 2400×1200
2, 2.5, 3 8, 9, 10 40 80 1220 × 2000 2400×1200
2, 2.5, 3 10, 12, 15 50 110 1220 × 2000 2400 ×1200
2, 2.5, 3 16, 18, 20 63 150 1220 × 2000 2400 × 1200
2, 2.5, 3 25, 28, 30 80 200 1220 × 2000 2400 × 1200 Hexagonal (knuckle about 40 mm)
2, 2.5, 3 25, 28, 30 95 250 1220 × 2000 2400 × 1200
2, 2.5, 3 25, 28, 30 95 300 1220 × 2000 2400 × 1200
  • Frame size: aluminum angle: 30 × 30 × 2 mm and above; for large size, 3 mm thickness is recommended; the large the frame, the thicker the aluminum angle.
  • Other sizes are available upon request.
Recommended Expanded Metal Ceiling Specifications



Cases of Architectural Expanded Metal



OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering 0



OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering 1



OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering 2



OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering 3































OEM Architectural Expanded Mesh Metal Sheet 4x8 for Building Covering 4
