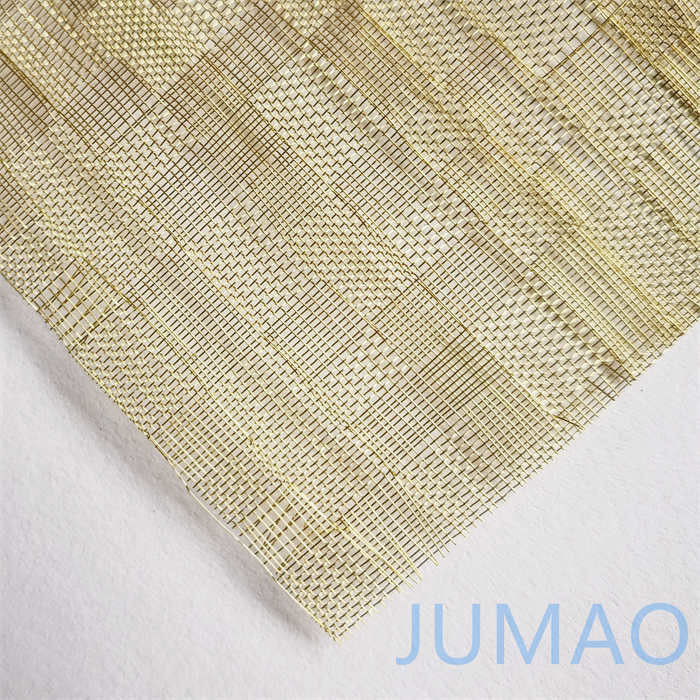

3mm Woven Metal Mesh Laminated Glass Architectural
  • 3mm Woven Metal Mesh Laminated Glass Architectural
  • 3mm Woven Metal Mesh Laminated Glass Architectural
  • 3mm Woven Metal Mesh Laminated Glass Architectural
  • 3mm Woven Metal Mesh Laminated Glass Architectural

3mm Woven Metal Mesh Laminated Glass Architectural

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-FLG166
Product Details
Product Name:
Mesh Laminated Glass
Laminated Wire Mesh
Stainles Steel, Aluminum Alloy, Copper, Imitation Metal
Lots Of Choices
Meet To Your Needs
Architectural Glass
Energy Saving

3mm Mesh Laminated Glass


Woven Mesh Laminated Glass


3mm laminated glass metal mesh

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

3mm Woven Metal Mesh Laminated Glass Architectural



What is mesh laminated glass


Mesh laminated glass is a type of safety glass in which a layer of wire mesh is embedded between two or more pieces of glass and bonded together with a sandwich. Wire mesh provides additional strength and impact resistance, making it ideal for applications that require enhanced safety and security, such as Windows, doors, partitions and skylights. Mesh laminated glass is available in a variety of wire mesh types, including stainless steel, aluminum and copper, and can also be combined with other sandwich materials such as PVB or EVA to achieve different performance characteristics.

Packing: According to your quantity and size customized fumigation-free sealed wooden box, and take certain internal packaging protection measures to ensure the safety of various transportation process

Indoor application: glass partition, desktop, Windows, glass stairs, handrails, doors, walls, bathrooms, etc.

External wall applications: glass skylight, glass dome, hotel, airport, exhibition hall, shopping mall, stadium, museum, hospital, glass canopy, glass balcony, glass fence, pool glass fence, glass railing, glass railing, etc.


Laminated glass wire mesh- shock and fire proof


Laminated glass metal mesh, also known as laminated glass mesh, laminated glass metal mesh or laminated glass tape cloth, is made of multiple layers of glass and laminated wire mesh. Before the glass is formed, that is, the glass is in a semi-molten state, and the glass and metal mesh are compressed by a metal roller, and then the laminated glass metal mesh is formed. It's like a compressed sandwich, but this compressed sandwich is made of glass and wire mesh. Generally, annealed glass or tempered glass is used, and decorative mesh or architectural mesh is used. Due to the advanced process and high-quality raw materials, laminated glass wire mesh to a large extent to avoid damage at the same time, but also has excellent impact and seismic resistance. Thus, it has become a fashionable and practical decorative material in modern indoor and outdoor design. At the same time, we not only provide laminated glass mesh, but also provide the wire mesh for making laminated glass mesh. So if you are interested in our products, please contact us for more information.


Specifications And Features Of Mesh Laminated Glass​


Interlayer wire mesh material: stainless steel, copper, brass, aluminum alloy, etc.

Type of glass: ordinary laminated glass, tempered laminated glass, coated laminated glass, low-e laminated glass, silk screen laminated glass, bullet-proof laminated glass, fireproof laminated glass, etc

Overall thickness :3 + 0.38 + 3mm, 3 + 0.76 + 3mm, 4 + 0.38 + 4mm, 4 + 0.76 + 4mm, 5 + 0.38 + 5mm, 5 + 0.76 + 5mm, 6 + 0.38 + 6mm, 6 + 0.76 + 6mm 6mm, 8 + 0.76 + 8mm, 10 + 0.76 + 10mm, etc.

Machine size :300 × 300 mm, 1220 × 1830 mm, 1500 × 2000 mm, 1530 × 2520 mm, 1830 × 2440 mm, 2000 × 2500 mm, 2140 × 3300 mm, 2250 × 3600 mm, 2800 × 7000 mm, 3000 × 8000 mm, can also be customized.


Beautiful and attractive.

High strength, unique texture.

Transparent and bright, exquisite structure.

The design is fashionable and the function is practical.

Uv and fire resistance.

Impact resistance, impact resistance.

Excellent sound insulation and safety.

Many optional options, long service life.


Data Table Format for Mesh Laminated Glass


Material Stainless Steel, brass,copper,etc.
Max Size 2440mm*3600mm (According to the size of the fabric)
Length 1m, 2m, 8m,10m,30m, 60m,etc.
Finish Color Customized
  • Enhances aesthetic appeal.
  • Dynamic colours – both translucent or transparent can be created.
  • Can be combined with a neutral, solar control, or thermal-insulated glass.
  • 4 Suitable for safety, security, and sound insulation, as well as UV protection
  • Affords different levels of translucency for visual screening


Where to use airport, hotel, exhibition hall, opera house, office building, shopping mall, bar, private residence.
Application Widely used in building facades, indoor partitions, screens, ceilings, walls, balconies, corridors, etc.



Cases of Mesh Laminated Glass


3mm Woven Metal Mesh Laminated Glass Architectural 0


3mm Woven Metal Mesh Laminated Glass Architectural 1


3mm Woven Metal Mesh Laminated Glass Architectural 2


3mm Woven Metal Mesh Laminated Glass Architectural 3
















3mm Woven Metal Mesh Laminated Glass Architectural 4
