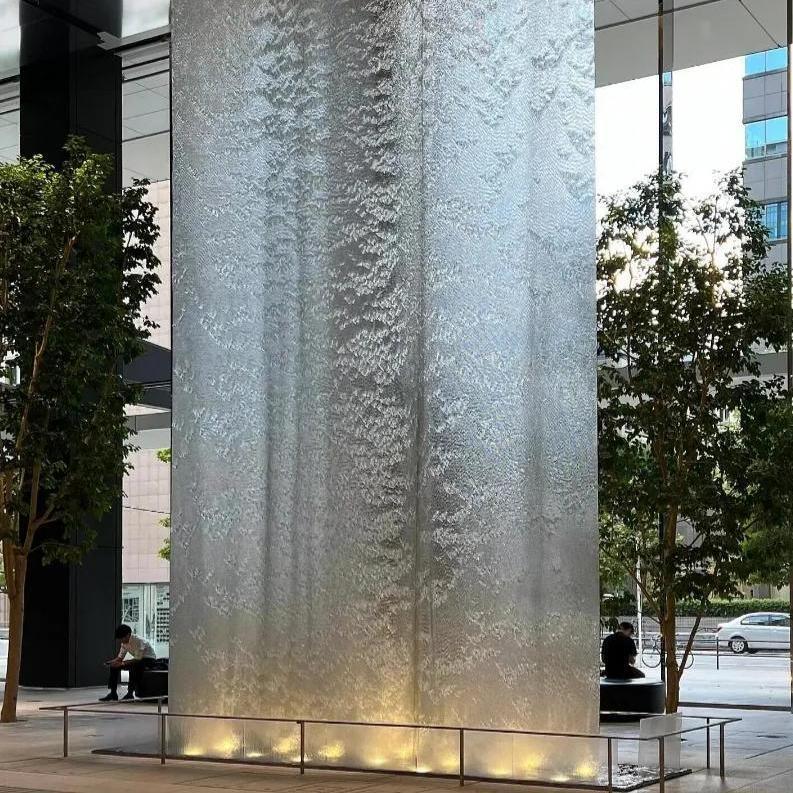

Stainless Steel Water Curtain
>
| Parameter | Details |
|---|---|
| Material | 304 woven stainless steel wire mesh; 316 stainless steel available as premium upgrade, perfectly suited for coastal construction projects |
| Size | Fully customizable. Standard dimensions: Height 2.0–3.0m, Width 1.0–6.0m; single unit maximum span reaches 12 meters |
| Water Flow Rate | 8–15 L/min per width meter. Water output adjustable flexibly through flow regulating valves |
| Lighting Configuration | Top fitted waterproof LED light strips (2700K–4000K, IP65 waterproof rating); ground spotlights available as optional extras |
| Circulating Water System | Assembled with circulating pump and water purification filter. Operational noise controlled below 45dB, meeting Grade A+ high-efficiency energy standards |
| Working Temperature | -10°C ~ 50°C. Anti-freeze accessory packages can be equipped for construction projects in cold regions |
| Surface Treatment | Brushed texture / mirror polished finish |
| Installation Method | Wall mounted, self-supporting freestanding structure, embedded assembly integrated within building facades |
| Warranty Terms | 2-year warranty for vital assemblies (water pumps, LED lighting components); 5-year warranty covering stainless steel woven mesh panels |
![]()
