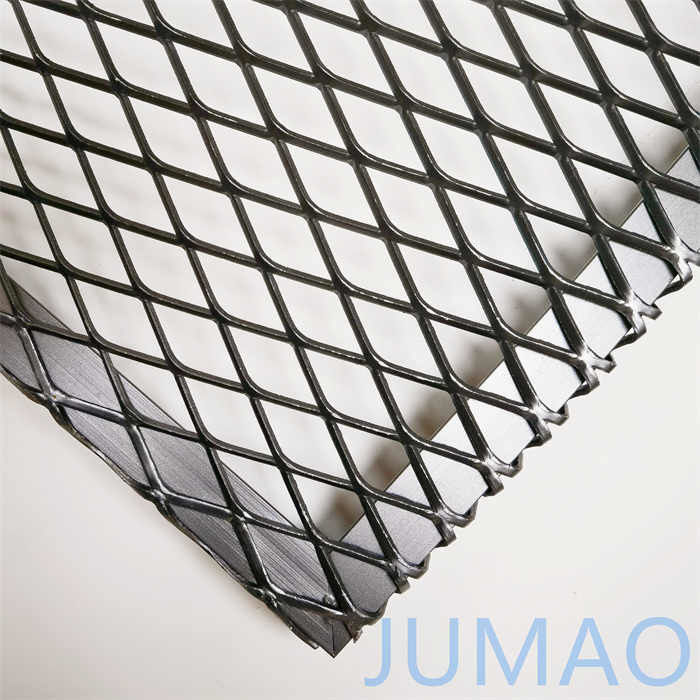

Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets
  • Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets
  • Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets
  • Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets
  • Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets

Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-EMC0973
Product Details
Product Name:
Architectural Expanded Metal
Keyword:
Expanded Metal Panel
Raw Material:
Stainless Steel Or Mild Steel
Feature:
Allows For Free Passage Of Air
LWD:
0.8"
SWD:
0.4”
Finish:
Grey
Surface Treatment:
PVDF
Size:
0.38' *0.76'
Application:
Ceiling Tiles
Highlight:

PVDF architectural expanded metal mesh

,

EML architectural expanded metal mesh

,

Aluminum eml mesh sheets

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
Price
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets





Supplier and manufacturer of architectural expanded metals -Jumao



In China, we have been finding reliable solutions to the most difficult metal industry challenges since 2010. We are known for fast project turnaround times, close attention to detail, and a willingness to do whatever it takes to achieve the goal of customer satisfaction. Our modern 5,000 square meter facility in Hengshui, Hebei Province, China, offers projects to clients in a variety of construction industries, including construction companies, parks and zoos, building maintenance companies, restaurant designers and more.

Other building metal options

Are you still looking for the perfect alternative to building metal? We have a variety of options. Check out our construction lines, perforated metal, bar grating. Our FRP products are also sometimes used.



JUMAO architectural expanded metal



Architects and developers use architectural grids in a range of interior and exterior projects, from decorative features and interior wall displays to large building cladding and facades.



The expanded metal mesh provides a controlled profile for surfaces including ceilings, cladding, screens and columns, and because this material controls the movement of light and air, it offers functional and aesthetic advantages.



The expanded metal mesh can also reduce a building's solar gain by blocking the sun's rays from moving through the day. The expansion process creates angled, louvered holes inside the material that act as multiple miniature shadows. The holes are created without wasting any material.



A variety of materials, colors, patterns, finishes and textures are available to control the flow of light and air, which can reduce a building's solar gain. Uses include ceilings, screens and cladding

We can also offer a variety of finishing options including galvanizing, polyester powder coating and anodizing.



In addition, we offer a range of metalworking services to assist suppliers, contractors and end users with their projects, including welding, cutting and drilling.



Environmental advantage of architectural expanded metal



The main environmental advantage of expanded metal is its sustainability: it is 100% recyclable. Raw materials are typically sourced from metal suppliers, which typically include 20 to 35 percent recycled metal, with some suppliers using up to 40 percent recycled metal.



The manufacturing process is also environmentally friendly. A metal coil is unwound and placed between a set of cutters. Contrary to popular belief, these knives do not hit metal. Instead, it is cut open and stretched at the same time, creating the iconic diamond pattern of expanded metal. No additional parts or processes are required, more finished products are produced from raw materials, and little or no waste is generated. It is not composed of separate lines, but a single sheet, lightweight, with an extremely high strength-to-weight ratio, and no points that can be separated.



Other building uses

As sunshades or window panels, optimized lines and openings can greatly reduce the amount of solar radiant heat entering a building. Other uses include awnings, awnings, privacy panels, outdoor furniture, trellises and living walls, gates, fences, stairs, railings, cabinet filling panels, shelves and more, and you are only limited by your imagination.



Data Table Format for Architectural Expanded Metal



Material

Thickness (mm)

Strand Width (mm)

SWD (mm)

LWD (mm)

Recommended Size: Width × Length (mm)

Size 1

Size 2

Aluminum 1.5, 2 2, 2.5 10 20 1000 × 2000 1200 × 2000
1.5, 2 2, 2.5 14 20 1000 × 2000 1200 × 2000
1.5, 2 2, 2.5 12 25 1000 × 2000 1200 × 2000
1.5, 2 2, 2.5, 3 15 30 1000 × 2000 1200 × 2000
1.5, 2 2.5, 3, 4 17 40 1000 × 2000 1200 × 2000
1.5, 2, 2.5, 3 4, 5 22 40 1000 × 2000 1200 × 2000
2, 2.5, 3 5, 6, 7 25 60 1000 × 2000 1200 × 2000
2, 2.5, 3 5, 6, 7 30 60 1000 × 2000 1200 × 2000
2, 2.5, 3 3.5, 4 16.5 60 1000 × 2000 1200 × 2000
  • Other sizes are available upon request.
  • For larger sizes, reinforcement is required to prevent expanded metal panels from sagging.
  • For expanded metal panel with mesh bending frame, the mesh width shall be equal to the panel width; for expanded metal panel with angle steel frames, bending shall be considered, so the mesh width shall be 4–5 cm smaller than the panel width.
  • Frame size: aluminum angle: 30 × 30 × 2 mm (thickness); hang-in angle: 30 × 30 × 2 mm (thickness); for panels larger than 1200 × 2000 mm, 3 mm thick is recommended.



Cases of Architectural Expanded Metal



Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets 0



Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets 1



Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets 2



Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets 3































Aluminum PVDF EML Architectural Expanded Metal Mesh Sheets 4
