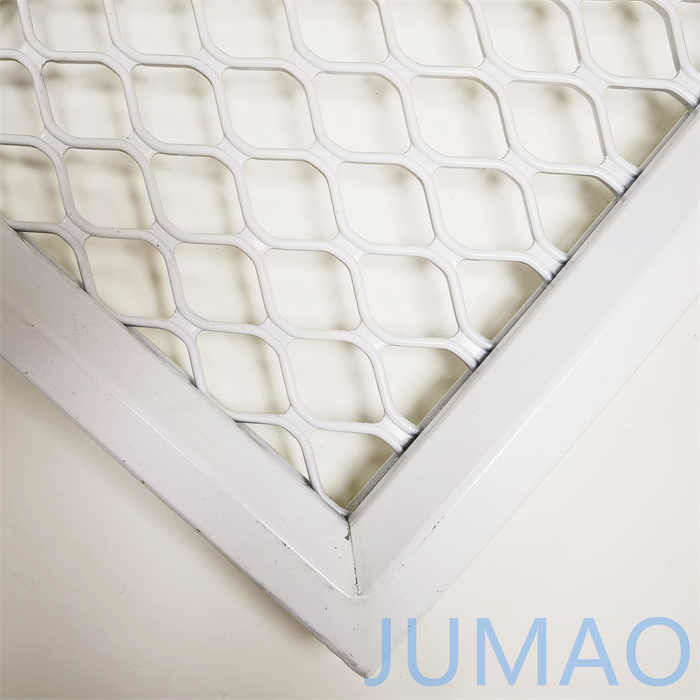

ODM Architectural Expanded Metal Mesh Panels for Building Facades
  • ODM Architectural Expanded Metal Mesh Panels for Building Facades
  • ODM Architectural Expanded Metal Mesh Panels for Building Facades
  • ODM Architectural Expanded Metal Mesh Panels for Building Facades
  • ODM Architectural Expanded Metal Mesh Panels for Building Facades

ODM Architectural Expanded Metal Mesh Panels for Building Facades

Place of Origin CHINA
Brand Name JUMAO
Certification CE / ISO
Model Number JUMAO-EMC0971
Product Details
Product Name:
Architectural Expanded Metal
Keyword:
Expanded Metal Panel
Raw Material:
Aluminum,Steel,Copper,Brass
Feature:
Strong And Rigid
LWD:
30mm
SWD:
10mm
Finish:
White
Surface Treatment:
PVDF
Size:
1220mm*2440mm
Application:
Building Facades, Ceiling
Highlight:

ODM Architectural Expanded Metal

,

Building Facades Architectural Expanded Metal

,

ODM expanded metal mesh panels

Payment & Shipping Terms
Minimum Order Quantity
1 Square Meter
Price
USD 25-95 Per Square Meter
Packaging Details
Wooden Box
Delivery Time
3-40 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
8000 Square Meters Per Momth
Product Description

ODM Architectural Expanded Metal Mesh Panels for Building Facades





All kinds of expanded metal products



Our expanded metal products are available in a variety of materials, hole patterns, sizes and colors to meet the specific requirements of your different applications. In addition, we are constantly exploring new application areas and developing new expanded metal products.

Contact us and our professional team will select the right expansion metal for your application.

We have up to 4 m width expanded metal machines, flattening machines and leveling machines to meet extra large expanded metal production demands.

Available in a variety of materials, hole patterns and colors, our decorative architectural expanded metals perfectly combine aesthetics and function. Therefore, it has become a popular building decoration material in modern times. Widely used in external walls, ceilings, shading, interior decoration, handrails and so on.

Contact us and our designers and engineering teams will tailor the best extended metal solution to your requirements.



Features of architectural expanded metal ceiling



Architectural expanded metal ceiling is one of the indispensable materials in modern architectural design. It not only brings amazing visual effects, but also has practical functions such as fire prevention, heat insulation and sound absorption. Widely used in offices, libraries, shopping malls, airports, railway stations and other public buildings.



It is generally made of aluminum alloy plates and comes in various hole patterns and sizes. Its powder coating, anodized or PVDF coating finish provides an attractive look with even color.



Features of architectural expanded metal

Expanded metal not only brings novel and unique visual effects, but also has the following functional advantages:



-Fire protection. Aluminum and stainless steel expansion metals have natural fire resistance properties and comply with the Code of Practice for Fire Safety in Buildings.

-Beautiful and safe. At the time of installation, a certain gap should be left for the ventilation pipe, sprinkler system and circuit of the house, which can not only provide a beautiful appearance, but also form a vent to ensure indoor safety

-Flexible and changeable. The specifications of the expanded metal can be customized to achieve the best level of diffuse lighting.

-Thermal insulation. Good heat indication helps reduce the cost of indoor air conditioning systems.

-Absorb sound. Good sound absorption helps to reduce noise in the room.

Easy to install and remove. Suspension system installation, easy to install and disassemble, easy to maintain the roof system.



Architectural expanded metal sunshade



Air conditioning systems are usually installed inside buildings to create a comfortable indoor environment. However, these systems tend to consume a lot of energy, so expanded metal awnings are often installed in modern buildings to reduce energy consumption. Expanded metal is an innovative sunshade material made from aluminum sheets that are cut and stretched. Its special 3D structure effectively blocks strong and dazzling sunlight, and its uniform openings allow fresh air to pass freely, thus creating a cooler and more comfortable environment for those inside the building.



Expanded metal awnings are widely used in residential buildings, office buildings, sports venues, shopping centers and so on.

As the sun rises in the sky, the light passing through the expanded metal changes depending on the Angle of the light. When the sun reaches a certain Angle, the line width produces the greatest shadow area. At this time, the mesh opening can maximize the daylight and air circulation in the room, making the room bright and cool. This shading effect is similar to the principle of louvers.



Data Table Format for Architectural Expanded Metal



Recommended Expanded Metal Facade Specification

Material

Thickness (mm)

Strand Width (mm)

SWD (mm)

LWD (mm)

Recommended Size: Width × Length (mm)

Remarks

Size 1

Size 2

Aluminum 2, 2.5, 3 8, 9, 10 34 75 1220 × 2000 2400×1200
2, 2.5, 3 8, 9, 10 40 80 1220 × 2000 2400×1200
2, 2.5, 3 10, 12, 15 50 110 1220 × 2000 2400 ×1200
2, 2.5, 3 16, 18, 20 63 150 1220 × 2000 2400 × 1200
2, 2.5, 3 25, 28, 30 80 200 1220 × 2000 2400 × 1200 Hexagonal (knuckle about 40 mm)
2, 2.5, 3 25, 28, 30 95 250 1220 × 2000 2400 × 1200
2, 2.5, 3 25, 28, 30 95 300 1220 × 2000 2400 × 1200
  • Frame size: aluminum angle: 30 × 30 × 2 mm and above; for large size, 3 mm thickness is recommended; the large the frame, the thicker the aluminum angle.
  • Other sizes are available upon request.
Recommended Expanded Metal Ceiling Specifications



Cases of Architectural Expanded Metal



ODM Architectural Expanded Metal Mesh Panels for Building Facades 0



ODM Architectural Expanded Metal Mesh Panels for Building Facades 1



ODM Architectural Expanded Metal Mesh Panels for Building Facades 2



ODM Architectural Expanded Metal Mesh Panels for Building Facades 3































ODM Architectural Expanded Metal Mesh Panels for Building Facades 4
